Understanding the Brayton Cycle: A Simplified Guide
The Brayton cycle is a thermodynamic cycle that describes the workings of many gas turbine engines, from jet engines powering airplanes to gas turbines generating electricity. While the underlying physics can seem complex, the fundamental principles are surprisingly straightforward. This article will break down the Brayton cycle, explaining its key components and processes in a clear and accessible manner.
1. The Four Processes of the Brayton Cycle
The Brayton cycle consists of four distinct processes, each affecting the pressure and temperature of the working fluid (usually air):
1. Isentropic Compression: This is where air is drawn into the compressor and compressed to a significantly higher pressure. "Isentropic" means the process is adiabatic (no heat exchange with the surroundings) and reversible (no energy is lost due to friction). Imagine squeezing a balloon – the air inside gets compressed and heated. In a gas turbine, this compression increases the air's temperature and density, preparing it for combustion.
2. Constant Pressure Heat Addition: The compressed air then enters the combustion chamber where fuel is injected and ignited. Heat is added at a constant pressure, dramatically raising the temperature of the gas mixture. Think of a Bunsen burner heating a pot of water – the pressure inside the pot remains roughly constant, but the temperature increases significantly. This high-temperature, high-pressure gas is the driving force behind the turbine.
3. Isentropic Expansion: The high-pressure, high-temperature gas expands rapidly through the turbine, doing work and rotating the turbine shaft. This expansion is also considered isentropic, meaning adiabatic and reversible. This process is analogous to releasing air from a compressed balloon – the air expands rapidly, cooling down in the process. The rotating shaft then drives a generator (in power plants) or a propeller (in airplanes).
4. Constant Pressure Heat Rejection: After passing through the turbine, the exhaust gases are released to the atmosphere. This is where heat is rejected at constant pressure, cooling the gas back to its initial temperature and pressure. Think of the exhaust gases from a car – they're hot, but they eventually cool down as they mix with the ambient air.
2. The Brayton Cycle on a Temperature-Entropy (T-s) Diagram

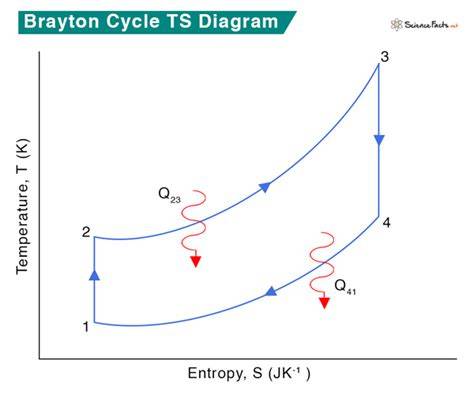

The Brayton cycle is often represented on a T-s diagram, a graph plotting temperature (T) against entropy (s). Entropy is a measure of disorder or randomness in a system. The cycle appears as a rectangle with two isentropic (vertical) lines representing compression and expansion, and two constant-pressure (horizontal) lines representing heat addition and rejection. The area enclosed within the rectangle represents the net work produced by the cycle.
3. Efficiency of the Brayton Cycle
The efficiency of the Brayton cycle is determined by the ratio of net work output to the heat input. Several factors influence this efficiency:
Compressor Pressure Ratio: A higher pressure ratio leads to higher work output, but also increases the work required for compression, making the net gain less significant. There's an optimal pressure ratio for maximum efficiency.
Turbine Inlet Temperature: A higher turbine inlet temperature (TIT) increases the heat added and consequently the work output. However, material limitations restrict how high the TIT can be.
Regeneration: Adding a regenerator – a heat exchanger that preheats the compressed air using the heat from the exhaust gases – significantly improves the cycle's efficiency. This reduces the heat that needs to be added in the combustion chamber.
4. Practical Examples
Jet Engines: The Brayton cycle is the fundamental operating principle of jet engines. The compressor compresses air, fuel is burned, the hot gas expands through the turbine driving the compressor, and the remaining gas is expelled to produce thrust.
Gas Turbines for Power Generation: Large gas turbines in power plants use the Brayton cycle to generate electricity. The turbine's shaft rotates a generator, converting the mechanical energy into electrical energy.
5. Key Takeaways
Understanding the Brayton cycle provides valuable insight into the operation of many critical power-generation and propulsion systems. Optimizing the cycle's efficiency involves balancing compressor pressure ratio, turbine inlet temperature, and incorporating technologies like regeneration.
FAQs
1. What is the difference between the Brayton and Rankine cycles? The Brayton cycle uses a gas as the working fluid (typically air), while the Rankine cycle uses a liquid (typically water).
2. How does regeneration improve Brayton cycle efficiency? Regeneration preheats the compressed air using waste heat from the exhaust, reducing the heat input required and thus improving efficiency.
3. What are the limitations of the Brayton cycle? Limitations include material constraints on turbine inlet temperature and the efficiency losses due to friction and irreversibilities in the compressor and turbine.
4. What are some real-world applications of the Brayton cycle besides jet engines and power plants? It's also found in some types of industrial gas compressors and combined cycle power plants.
5. How does the pressure ratio affect the efficiency of the Brayton cycle? There's an optimal pressure ratio; very high ratios increase compression work, diminishing net work output, while very low ratios limit the work output from expansion.
